Facebook Conversions API (Actions)
Facebook Conversions API (Actions) enables advertisers to send events from their servers directly to Facebook. Server-side events link to Facebook Pixel events, and process like browser pixel events. This means that server-side events are used in measurement, reporting, and optimization, just like browser pixel events.
This document is about a feature which is in beta. This means that the Facebook Conversions API (Actions) destination is in active development, and some functionality may change before it becomes generally available.
Good to know: This page is about the Actions-framework Facebook Conversions API Segment destination. There’s also a page about the non-Actions Facebook Conversions API destination. Both of these destinations receive data from Segment.
Benefits of Facebook Conversions API (Actions) vs Facebook Conversions API Classic
The Facebook Conversions API (Actions) destination provides the following benefits over the classic Facebook Conversions API destination:
- Fewer settings. Data mapping for actions-based destinations happens during configuration, which eliminates the need for most settings.
- Clearer mapping of data. Actions-based destinations enable you to define the mapping between the data Segment receives from your source, and the data Segment sends to Facebook Conversions API.
- Prebuilt mappings. Mappings for standard Facebook Conversions API events, like
Purchase, are prebuilt with the prescribed parameters and available for customization. - Support for page calls. Page calls can be sent to Facebook as a standard Page View.
- Support for identify calls. Identify calls can be sent to Facebook as a standard or custom event.
- Support for multi-product arrays. Product data nested within arrays, like the
productsarray in the Order Completed event, can be sent to Facebook. - Data normalization. Data is normalized before it is hashed to ensure the hashed value matches Facebook Pixel (browser).
Getting started
Set up your Pixel to work with the Facebook Conversions API (Actions) destination. You can use an existing Facebook Pixel that you already have set up, or create a new one.
Option 1: Create a new pixel
- Go to the Facebook Business Events Manager and click Connect Data Sources.
- Choose “Web” and then click Get Started.
- Select “Conversions API” and then click Connect.
- Choose “Segment” from the list of partners.
- Enable the setting to “Authorize Segment Connection” and then click Continue.
Option 2: Configure an existing pixel
- Go to the Pixel Settings in Facebook Business Events Manager
- Scroll down to the “Set up through a partner integration section” and click Choose Partner.
- Choose “Segment” from the list of partners.
- Enable the setting to “Authorize Segment Connection” and then click Continue.
Connect Facebook Conversions API (Actions) to your workspace
- From the Segment web app, click Catalog, then click Destinations.
- Search for “Facebook Conversions API (Actions)” in the Destinations Catalog, and select the destination.
- Click Configure Facebook Conversions API (Actions) in the top-right corner of the screen.
- Select the source that will send data to Facebook Conversions API and follow the steps to name your destination.
- On the Settings tab, enter in your Pixel ID and click Save.
- Follow the steps in the Destinations Actions documentation on Customizing mappings.
Destination Settings
| Setting | Description |
|---|---|
| Pixel ID | Required. Your Facebook Pixel ID |
Available Actions
Build your own subscriptions! Combine supported triggers with the following Facebook Conversions API-supported actions:
Custom Event
Track your own custom events.
Custom Event is a Cloud action.
| Field | Description |
|---|---|
| Action Source | Type: STRINGThis field allows you to specify where your conversions occurred. |
| Event Name | Type: STRINGSend any custom event |
| Event Time | Type: STRINGA Unix timestamp in seconds indicating when the actual event occurred. |
| User Data | Type: OBJECTThese parameters are a set of identifiers Facebook can use for targeted attribution. You must provide at least one of the following user_data keys in your request. More information on recommended User Data parameters in Facebook’s Best Practices for Conversions API. |
| Custom Data | Type: OBJECTThe custom data object which can be used to pass custom properties. See here for more information |
| Event ID | Type: STRINGThis ID can be any unique string chosen by the advertiser. event_id is used to deduplicate events sent by both Facebook Pixel and Conversions API. |
| Event Source URL | Type: STRINGThe browser URL where the event happened. The URL must begin with http:// or https:// and should match the verified domain. event_source_url is required if action_source = “website”; however it is strongly recommended that you include it for any action_source. |
Purchase
Send event when a user completes a purchase
Purchase is a Cloud action.
| Field | Description |
|---|---|
| Action Source | Type: STRINGThis field allows you to specify where your conversions occurred. |
| Currency | Type: STRINGThe currency for the value specified. |
| Event Time | Type: STRINGA Unix timestamp in seconds indicating when the actual event occurred. |
| User Data | Type: OBJECTThese parameters are a set of identifiers Facebook can use for targeted attribution. You must provide at least one of the following user_data keys in your request. More information on recommended User Data parameters in Facebook’s Best Practices for Conversions API. |
| Value | Type: NUMBERThe value of a user performing this event to the business. |
| Content IDs | Type: STRINGProduct IDs associated with the event, such as SKUs (e.g. [“ABC123”, “XYZ789”]). |
| Content Name | Type: STRINGName of the page/product. |
| Content Type | Type: STRINGEither product or product_group based on the content_ids or contents being passed. |
| Contents | Type: OBJECTAn array of JSON objects that contains the quantity and the International Article Number (EAN) when applicable, or other product or content identifier(s). id and quantity are the required fields. |
| Event ID | Type: STRINGThis ID can be any unique string chosen by the advertiser. event_id is used to deduplicate events sent by both Facebook Pixel and Conversions API. |
| Event Source URL | Type: STRINGThe browser URL where the event happened. The URL must begin with http:// or https:// and should match the verified domain. event_source_url is required if action_source = “website”; however it is strongly recommended that you include it for any action_source. |
| Number of Items | Type: INTEGERThe number of items when checkout was initiated. |
Search
Send event when a user searches content or products
Search is a Cloud action.
| Field | Description |
|---|---|
| Action Source | Type: STRINGThis field allows you to specify where your conversions occurred. |
| Event Time | Type: STRINGA Unix timestamp in seconds indicating when the actual event occurred. |
| User Data | Type: OBJECTThese parameters are a set of identifiers Facebook can use for targeted attribution. You must provide at least one of the following user_data keys in your request. More information on recommended User Data parameters in Facebook’s Best Practices for Conversions API. |
| Content Category | Type: STRINGCategory of the page/product. |
| Content IDs | Type: STRINGProduct IDs associated with the event, such as SKUs (e.g. [“ABC123”, “XYZ789”]). |
| Contents | Type: OBJECTAn array of JSON objects that contains the quantity and the International Article Number (EAN) when applicable, or other product or content identifier(s). id and quantity are the required fields. |
| Currency | Type: STRINGThe currency for the value specified. |
| Event ID | Type: STRINGThis ID can be any unique string chosen by the advertiser. event_id is used to deduplicate events sent by both Facebook Pixel and Conversions API. |
| Event Source URL | Type: STRINGThe browser URL where the event happened. The URL must begin with http:// or https:// and should match the verified domain. event_source_url is required if action_source = “website”; however it is strongly recommended that you include it for any action_source. |
| Search String | Type: STRINGA search query made by a user. This must be a string. |
| Value | Type: NUMBERThe value of a user performing this event to the business. |
Page View
Send a page view event when a user lands on a page
Page View is a Cloud action.
| Field | Description |
|---|---|
| Action Source | Type: STRINGThis field allows you to specify where your conversions occurred. |
| Event Time | Type: STRINGA Unix timestamp in seconds indicating when the actual event occurred. |
| User Data | Type: OBJECTThese parameters are a set of identifiers Facebook can use for targeted attribution. You must provide at least one of the following user_data keys in your request. More information on recommended User Data parameters in Facebook’s Best Practices for Conversions API. |
| Event ID | Type: STRINGThis ID can be any unique string chosen by the advertiser. event_id is used to deduplicate events sent by both Facebook Pixel and Conversions API. |
| Event Source URL | Type: STRINGThe browser URL where the event happened. The URL must begin with http:// or https:// and should match the verified domain. event_source_url is required if action_source = “website”; however it is strongly recommended that you include it for any action_source. |
Initiate Checkout
Send event when a user enters the checkout flow
Initiate Checkout is a Cloud action.
| Field | Description |
|---|---|
| Action Source | Type: STRINGThis field allows you to specify where your conversions occurred. |
| Event Time | Type: STRINGA Unix timestamp in seconds indicating when the actual event occurred. |
| User Data | Type: OBJECTThese parameters are a set of identifiers Facebook can use for targeted attribution. You must provide at least one of the following user_data keys in your request. More information on recommended User Data parameters in Facebook’s Best Practices for Conversions API. |
| Content Category | Type: STRINGCategory of the page/product. |
| Content IDs | Type: STRINGProduct IDs associated with the event, such as SKUs (e.g. [“ABC123”, “XYZ789”]). |
| Contents | Type: OBJECTAn array of JSON objects that contains the quantity and the International Article Number (EAN) when applicable, or other product or content identifier(s). id and quantity are the required fields. |
| Currency | Type: STRINGThe currency for the value specified. |
| Event ID | Type: STRINGThis ID can be any unique string chosen by the advertiser. event_id is used to deduplicate events sent by both Facebook Pixel and Conversions API. |
| Event Source URL | Type: STRINGThe browser URL where the event happened. The URL must begin with http:// or https:// and should match the verified domain. event_source_url is required if action_source = “website”; however it is strongly recommended that you include it for any action_source. |
| Number of Items | Type: INTEGERThe number of items when checkout was initiated. |
| Value | Type: NUMBERThe value of a user performing this event to the business. |
View Content
Send event when a user views content or a product
View Content is a Cloud action.
| Field | Description |
|---|---|
| Action Source | Type: STRINGThis field allows you to specify where your conversions occurred. |
| Event Time | Type: STRINGA Unix timestamp in seconds indicating when the actual event occurred. |
| User Data | Type: OBJECTThese parameters are a set of identifiers Facebook can use for targeted attribution. You must provide at least one of the following user_data keys in your request. More information on recommended User Data parameters in Facebook’s Best Practices for Conversions API. |
| Content Category | Type: STRINGCategory of the page/product. |
| Content IDs | Type: STRINGProduct IDs associated with the event, such as SKUs (e.g. [“ABC123”, “XYZ789”]). |
| Content Name | Type: STRINGName of the page/product. |
| Content Type | Type: STRINGEither product or product_group based on the content_ids or contents being passed. |
| Contents | Type: OBJECTAn array of JSON objects that contains the quantity and the International Article Number (EAN) when applicable, or other product or content identifier(s). id and quantity are the required fields. |
| Currency | Type: STRINGThe currency for the value specified. |
| Event ID | Type: STRINGThis ID can be any unique string chosen by the advertiser. event_id is used to deduplicate events sent by both Facebook Pixel and Conversions API. |
| Event Source URL | Type: STRINGThe browser URL where the event happened. The URL must begin with http:// or https:// and should match the verified domain. event_source_url is required if action_source = “website”; however it is strongly recommended that you include it for any action_source. |
| Value | Type: NUMBERThe value of a user performing this event to the business. |
Add to Cart
Send event when a user adds a product to the shopping cart
Add to Cart is a Cloud action.
| Field | Description |
|---|---|
| Action Source | Type: STRINGThis field allows you to specify where your conversions occurred. |
| Event Time | Type: STRINGA Unix timestamp in seconds indicating when the actual event occurred. |
| User Data | Type: OBJECTThese parameters are a set of identifiers Facebook can use for targeted attribution. You must provide at least one of the following user_data keys in your request. More information on recommended User Data parameters in Facebook’s Best Practices for Conversions API. |
| Content IDs | Type: STRINGProduct IDs associated with the event, such as SKUs (e.g. [“ABC123”, “XYZ789”]). |
| Content Name | Type: STRINGName of the page/product. |
| Content Type | Type: STRINGEither product or product_group based on the content_ids or contents being passed. |
| Contents | Type: OBJECTAn array of JSON objects that contains the quantity and the International Article Number (EAN) when applicable, or other product or content identifier(s). id and quantity are the required fields. |
| Currency | Type: STRINGThe currency for the value specified. |
| Event ID | Type: STRINGThis ID can be any unique string chosen by the advertiser. event_id is used to deduplicate events sent by both Facebook Pixel and Conversions API. |
| Event Source URL | Type: STRINGThe browser URL where the event happened. The URL must begin with http:// or https:// and should match the verified domain. event_source_url is required if action_source = “website”; however it is strongly recommended that you include it for any action_source. |
| Value | Type: NUMBERThe value of a user performing this event to the business. |
Configuration options
The Facebook Conversions API (Actions) destination gives you several ways to implement your conversion tracking. You can use it with Facebook Pixel, or as a stand-alone alternative. You can read more about implementation options below and in Facebook documentation.
Send events from both the browser and the server
This approach provides a redundancy that ensures maximum signal reliability. Events that previously could have been lost (for several different reasons) when sent from the browser to Facebook Pixel, are also captured using the Facebook Conversions API. You can use this if you do not want to miss any events coming from the browser.
Match rate considerations

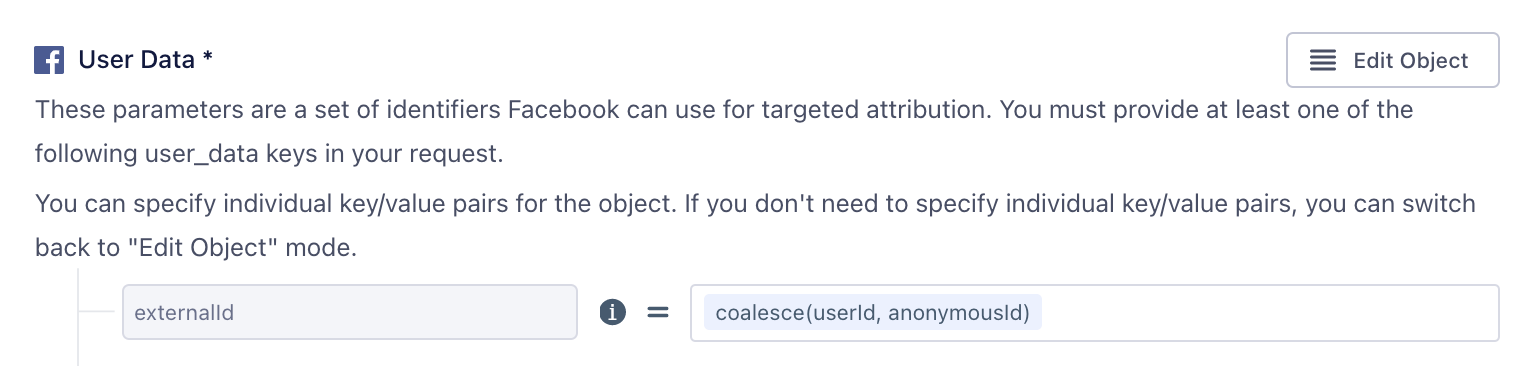

For this option to work best, pass the same External ID from the browser and the server. To do this, go to your Facebook Pixel destination settings in Segment and enable the Enable Advanced Matching setting. Next, enable the Use User ID or Anonymous ID as External ID setting, or choose a custom trait for External ID using the Advanced Match Trait Key for External ID setting.
With the Facebook Conversions API (Actions) destination, you can choose any field in your event to map to External ID. By default, Segment uses the userId (or anonymousId if userId is not present) to set the External ID, but you can change this in the User Data object mapping of your Action.

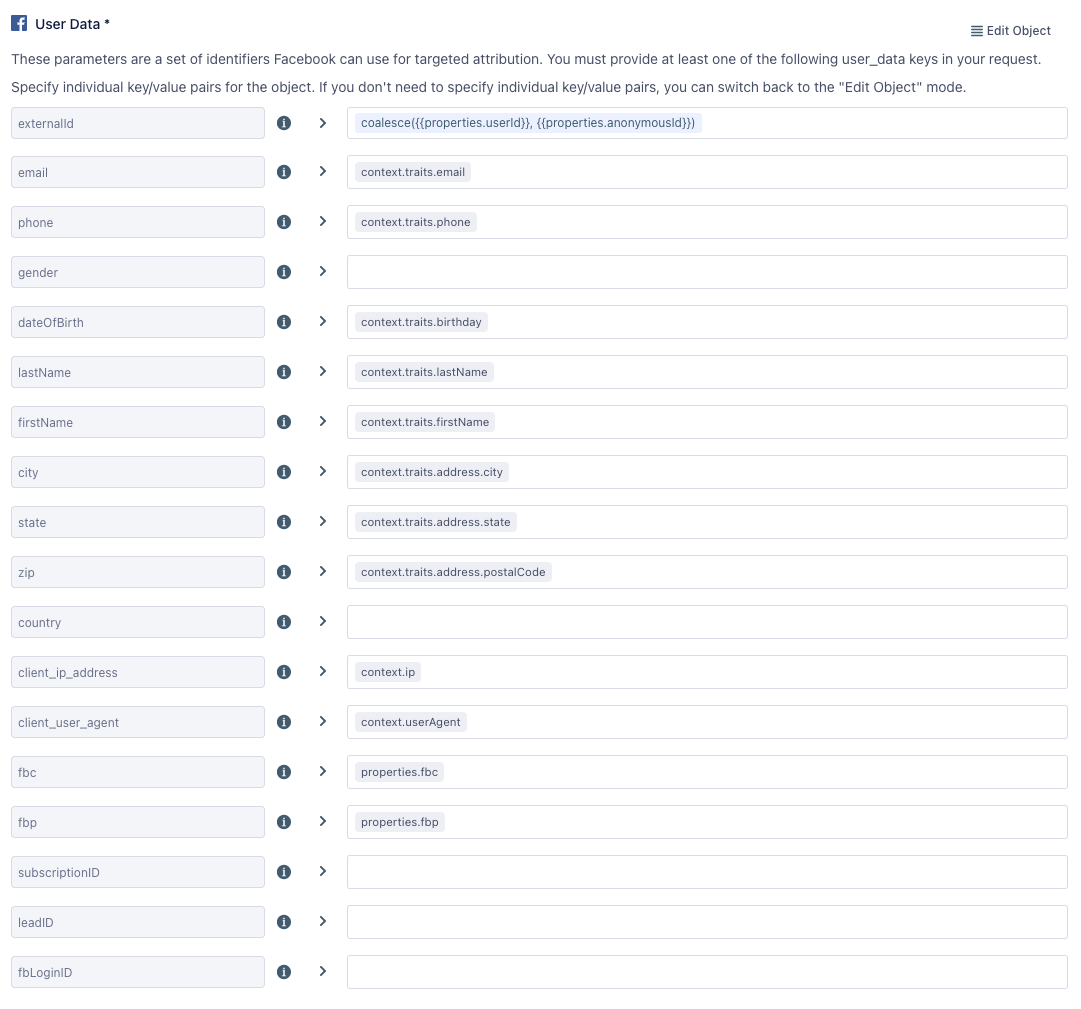

You can send additional User Data to increase the match rate for events from a server source. Collect other fields from the browser, like User Agent, IP Address, and Facebook’s cookie parameters (fbp, fbc), pass them to the server, and map them in the User Data object. See Facebook’s Customer Information Parameters for more information on User Data fields.
Deduplication considerations
A redundant setup requires deduplication to ensure browser events that are sent to Facebook Pixel and Facebook Conversions API are not duplicated. Facebook can deduplicate identical events sent through the Pixel and the Conversions API in two ways:
Segment’s Facebook Conversions API (Actions) destination allows you to map your data to these four fields, to support either deduplication method. Please note that Segment’s Facebook Pixel destination will set messageId as the eventId. See Facebook’s Handling Duplicate Pixel and Conversions API Events for more information.
Send some events from the browser and others from the server
If you want to separate events completed on a user’s browser from events completed outside the browser, such as a server-based payment system, you can send some events to Facebook Pixel and other events to Facebook Conversions API. Sensitive information is best kept out of browsers, so any data you don’t want exposed to users should only be sent using a server source. You can also set up the Conversions API to measure customer actions that are deeper in your marketing funnel. Seeing these deeper funnel events means you can more accurately measure how your ads are helping you reach your business goals.
Match rate considerations
For this option to work best, the same External ID needs to be passed from the browser and the server. To achieve this, go to your Facebook Pixel destination settings in Segment and enable the Enable Advanced Matching setting. Next, enable the Use User ID or Anonymous ID as External ID setting, or choose a custom trait for External ID using the Advanced Match Trait Key for External ID setting.
With the Facebook Conversions API (Actions) destination, you can choose any field in your event to map to External ID. By default, Segment uses the userId (or anonymousId if userId is not present) to set the External ID, but you can change this in the User Data object mapping of your Action.
You can send additional User Data to increase the match rate for events from a server source. Collect other fields from the browser, like User Agent, IP Address, and Facebook’s cookie parameters (fbp, fbc), pass them to the server, and map them in the User Data object. See Facebook’s Customer Information Parameters for more information on User Data fields.
Deduplication considerations
If you choose this option, each source sends different events, and deduplication is not necessary.
Send events from the server
Use this approach if you don’t want to track users from the browser with Facebook Pixel. By default, Facebook Pixel collects cookie data, as well as browser data such as the IP Address and the User Agent, some of which you might not want to collect. By sending from a Segment server source to Facebook’s Conversions API, you can control which identifiers you pass to Facebook.
Match rate considerations
If you use Facebook Conversions API as a stand-alone without certain data fields collected from the browser, the match rate might not be as high as if you included them. You can increase the match rate for events from a server source by including User Data, such as Zip Code, Country and State.
You can send additional User Data to increase the match rate for events from a server source. Collect other fields from the browser, like User Agent, IP Address, and Facebook’s cookie parameters (fbp, fbc), pass them to the server, and map them in the User Data object.
Deduplication considerations
If you choose this option, each source sends different events, and deduplication is not necessary.
Verify Events in Facebook
After you start sending events, you should start seeing them in twenty minutes. You can confirm that Facebook received them:
- Go to the Events Manager.
- Click on the corresponding pixel.
- In the Overview tab, look for events where the “Connection Method” is Server.
This page was last modified: 17 Dec 2021
