AWS S3 with IAM Role Support Destination

Differences between the Amazon S3 destination and the AWS S3 destination

The AWS S3 destination provides a more secure method of connecting to your S3 buckets. It uses AWS’s own IAM Roles to define access to the specified buckets. For more information about IAM Roles, see Amazon’s IAM role documentation.

Functionally, the two destinations (Amazon S3 and AWS S3 with IAM Role Support) copy data in a similar manner.

Getting Started

The AWS S3 destination puts the raw logs of the data Segment receives into your S3 bucket, encrypted, no matter what region the bucket is in.

Keep in mind that AWS S3 works differently than most other destinations. Using a destinations selector like the integrations object does not affect events with AWS S3.

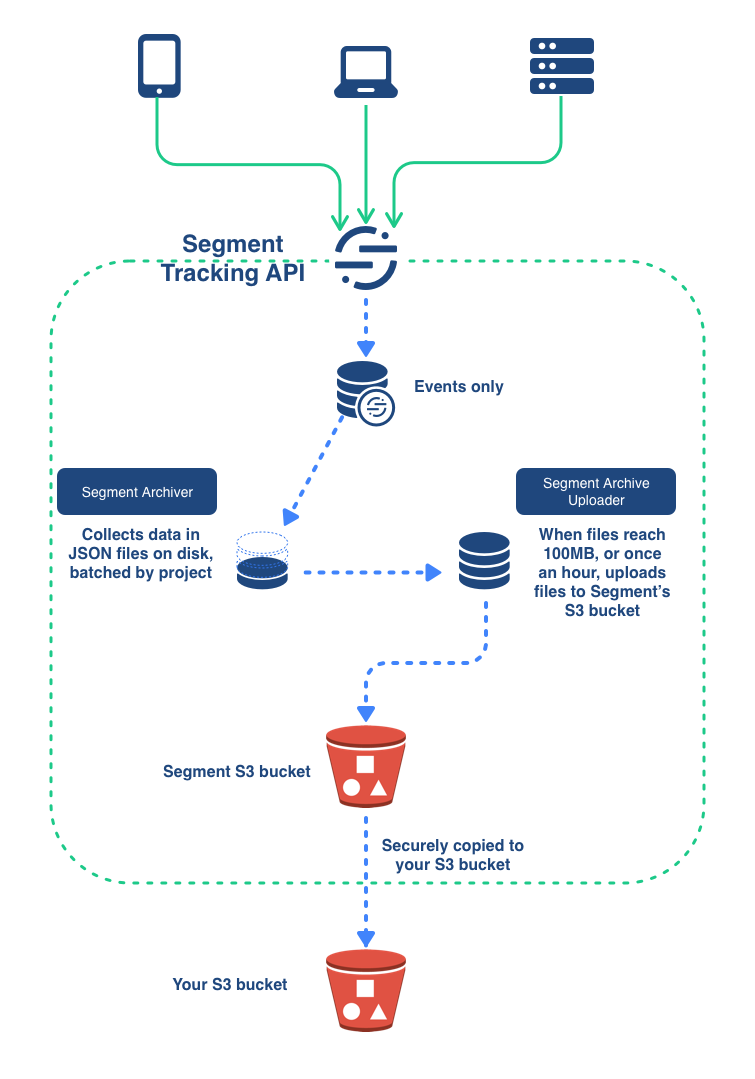

The diagram below illustrates how the S3 destination works.

The Segment Tracking API processes data from your sources, and collects the Events in batches. When these batches reach a 100 MB, or once per hour, a Segment initiates a process which uploads them to a secure Segment S3 bucket, from which they are securely copied to your own S3 bucket.

Create a new destination

Complete either Create an IAM role in the AWS console or Create an IAM role using the AWS CLI to configure the AWS S3 Destination with IAM Role Support.

Create an IAM role in the AWS console

To complete this section, you need access to your AWS dashboard.

1. Create a new S3 bucket in your preferred region. For more information, see Amazon’s documentation, Create your first S3 bucket.
2. Create a new IAM role for Segment to assume. For more information, see Amazon’s documentation, Creating a role to delegate permissions to an IAM user.
   1. When prompted to enter an Account ID, enter 595280932656. (You cannot enter an ARN in this step. In step 4, you can update the Principal to a specific role after you create an IAM role.)
   2. Click the Require External ID checkbox.
   3. Enter your Segment Workspace ID in the External ID field.
3. Attach the following policy to the IAM role created in step 2. Replace <YOUR_BUCKET_NAME> with the name of the S3 bucket you created in step 1.

    {
        "Version": "2012-10-17",
        "Statement": [
            {
            "Sid": "PutObjectsInBucket",
            "Effect": "Allow",
            "Action": [
                "s3:PutObject",
                "s3:PutObjectAcl"
            ],
            "Resource": "arn:aws:s3:::<YOUR_BUCKET_NAME>/segment-logs/*"
            }
      ]
    }


   If you’re using KMS encryption on your S3 bucket, add the following policy to the IAM role:

    {
      "Version": "2012-10-17",
      "Statement": [
          {
              "Sid": "AllowKMS",
              "Effect": "Allow",
              "Action": [
                  "kms:GenerateDataKey",
                  "kms:Decrypt"
              ],
              "Resource": "<YOUR_KEY_ARN>"
          }
        ]
    }


   If you have server-side encryption enabled, see the required configuration.

4. Update Principal in the role’s trust relationship document to arn:aws:iam::595280932656:role/segment-s3-integration-production-access. Replace <YOUR_WORKSPACE_ID> with your Segment Workspace ID.

    {
      "Version": "2012-10-17",
      "Statement": [
        {
          "Sid": "",
          "Effect": "Allow",
          "Principal": {
            "AWS": "arn:aws:iam::595280932656:role/segment-s3-integration-production-access"
          },
          "Action": "sts:AssumeRole",
          "Condition": {
            "StringEquals": {
              "sts:ExternalId": "<YOUR_WORKSPACE_ID>"
            }
          }
        }
      ]
    }


Create an IAM role using the AWS CLI

To create an IAM role with external ID and with S3 permissions using the AWS CLI, follow the steps below.

Prerequisites

To create an S3 IAM role, you must first install and configure the AWS CLI on your local machine and create an S3 bucket. Refer to Amazon’s documentation, Getting started with the AWS CLI for more information.

Procedure

1. Copy the following code snippet and save it as a file on your local machine titled trust-relationship-policy.json. Replace <YOUR_WORKSPACE_ID> with your Segment workspace ID.

    {
      "Version": "2012-10-17",
      "Statement": [
        {
          "Sid": "",
          "Effect": "Allow",
          "Principal": {
            "AWS": "arn:aws:iam::595280932656:role/segment-s3-integration-production-access"
          },
          "Action": "sts:AssumeRole",
          "Condition": {
            "StringEquals": {
              "sts:ExternalId": "<YOUR_WORKSPACE_ID>"
            }
          }
        }
      ]
    }


2. Navigate to the folder containing trust-relationship-policy.json and run the following command to create your IAM role and attach the trust relationship document, replacing <YOUR_ROLE_NAME> with the name you want to give the IAM role:

    aws iam create-role --role-name <YOUR_ROLE_NAME> --assume-role-policy-document file://trust-relationship-policy.json --description "IAM role for Segment to assume (AWS S3 destination)"


3. To verify that the IAM role is created, log into the AWS console and open the IAM Management Console. Under the Trust Relationship tab, there should be a key-value pair: a sts:ExternalID key with a value of your Segment workspace ID.

4. Copy the following IAM policy, replacing <YOUR_BUCKET_NAME> with the name of your S3 bucket, and save it as a file on your local machine titled iam-policy.json.

    {
      "Version": "2012-10-17",
      "Statement": [
        {
          "Sid": "PutObjectsInBucket",
          "Effect": "Allow",
          "Action": [
            "s3:PutObject",
            "s3:PutObjectAcl"
          ],
          "Resource": "arn:aws:s3:::<YOUR_BUCKET_NAME>/segment-logs/*"
        }
      ]
    }


5. Navigate to the folder containing iam-policy.json, and run the following command to create the IAM policy:

    aws iam create-policy --policy-name segment-s3-putobject --policy-document file://iam-policy.json --description "Allow Segment to PutObject into S3 destination bucket"


6. A successful output has the following format. Take note of the Arn, as you’ll need it in the next step.

    {
        "Policy": {
            "PolicyName": "segment-s3-putobject",
            "PolicyId": "AABC1DE2F34GG567H",
            "Arn": "arn:aws:iam::012345678912:policy/segment-s3-putobject",
            "Path": "/",
            "DefaultVersionId": "v1",
            "AttachmentCount": 0,
            "PermissionsBoundaryUsageCount": 0,
            "IsAttachable": true,
            "CreateDate": "2021-11-11T01:21:00+00:00",
            "UpdateDate": "2021-11-11T01:21:00+00:00"
        }
    }



7. Run the following command to attach the IAM policy to the IAM role, replacing <YOUR_ROLE_NAME> with the name of your role and <ARN_FROM_STEP_6_OUTPUT> with the Arn output from the last step:

    aws iam attach-role-policy --role-name <YOUR_ROLE_NAME> --policy-arn <ARN_FROM_STEP_6_OUTPUT>


Add the AWS S3 with IAM Role Support Destination

To finish configuration, enable the AWS S3 Destination with IAM Role Support destination in your workspace.

1. Add the AWS S3 destination from the Storage Destinations tab of the catalog. This document is about the AWS S3 destination. For information about the Amazon S3 destination, which does not include IAM Role support, see the documentation here.
2. Select the data source you’ll connect to the destination.
3. Provide a unique name for the destination.
4. Complete the destination settings:
   1. Enter the name of the region in which the bucket you created above resides.
   2. Enter the name of the bucket you created above. Be sure to enter the bucket’s name and not URI.
   3. Enter the ARN of the IAM role you created above. The ARN should follow the format arn:aws:iam::ACCOUNT_ID:role/ROLE_NAME.
5. Enable the destination.
6. Verify Segment data is stored in the S3 bucket by navigating to the <your_S3_bucket>/segment-logs in the AWS console. The bucket will take roughly 1 hour to begin receiving data.

Migrate an existing destination

To migrate an existing Amazon S3 destination to the AWS S3 with IAM Role Support Destination:

1. Configure the IAM role and IAM policy permissions as described in steps 2 - 4 above.
2. Add the AWS S3 destination and add the AWS Region and IAM role ARN. For the bucket name, enter <YOUR_BUCKET_NAME>/segment-logs/test. Enable the destination, and verify data is received at <YOUR_BUCKET_NAME>/segment-logs/test/segment-logs. If the folder receives data, continue to the next step. If you don’t see log entries, check the trust relationship document and IAM policy attached to the role.
3. Update the bucket name in the new destination to <YOUR_BUCKET_NAME>.
4. After 1 hour, disable the original Amazon S3 destination.
5. Verify that the <YOUR_BUCKET_NAME>/segment-logs receives data.
6. Remove the test folder created in step 2 from the bucket.

Migration steps for scenarios with multiple sources per environment

In cases where you have multiple sources per environment, for example staging sources pointing to a staging bucket, and production sources going to a production bucket, you need two IAM roles, one for staging, and one for production.

For example:

• stage_source_1 → stage_bucket
• stage_source_2 → stage_bucket
• stage_source_N → stage_bucket
• prod_source_1 → prod_bucket
• prod_source_2 → prod_bucket
• prod_source_N → prod_bucket

For each source in the scenario, complete the steps described in Migrate an existing destination, and ensure that you have separate IAM Roles and Permissions set for staging and production use.

Data format

Segment stores logs as gzipped, newline-separated JSON containing the full call information. For a list of supported properties, see the Segment Spec documentation.

Segment groups logs by day, and names them using the following format:

s3://{bucket}/segment-logs/{source-id}/{received-day}/filename.gz

The received-day refers to the UTC date Unix timestamp, that the API receives the file, which makes it easy to find all calls received within a certain timeframe.

Encryption

Configure encryption at the bucket-level from within the AWS console. For more information, see Amazon’s documentation Protecting data using encryption.

Custom Path Prefix

To use a custom key prefix for the files in your bucket, append the path to the bucket name in the Segment S3 destination configuration UI. For example, a bucket string mytestbucket/path/prefix would result in data copying to /path/prefix/segment-logs/{source-id}/{received-day}/.

How can I download the data from my bucket?

Amazon provides several methods to download data from an S3 bucket. For more information, see Downloading an object.

Personas

You can send computed traits and audiences generated using Segment Personas to this destination as a user property.

For user-property destinations, Segment sends an identify call to the destination for each user added and removed. The property name is the snake_cased version of the audience name, with a true/false value to indicate membership. For example, when a user first completes an order in the last 30 days, Personas sends an Identify call with the property order_completed_last_30days: true. When the user no longer satisfies this condition (for example, it’s been more than 30 days since their last order), Personas sets that value to false.

When you first create an audience, Personas sends an Identify call for every user in that audience. Later audience syncs send updates for users whose membership has changed since the last sync.

Supported Sources and Connection Modes

Segment offers an optional Device-based Connection Mode for Mobile data going to AWS S3, so that you can use AWS S3 features that collect data directly from the mobile device. To do this, you must package the Segment-AWS S3 mobile SDK with the Segment mobile library.

Settings

Segment lets you change these destination settings from the Segment app without having to touch any code.
